SpaNet 2200w (3.0 HP) 2 Speed Booster Pump (XS-30-2S)

Product Description

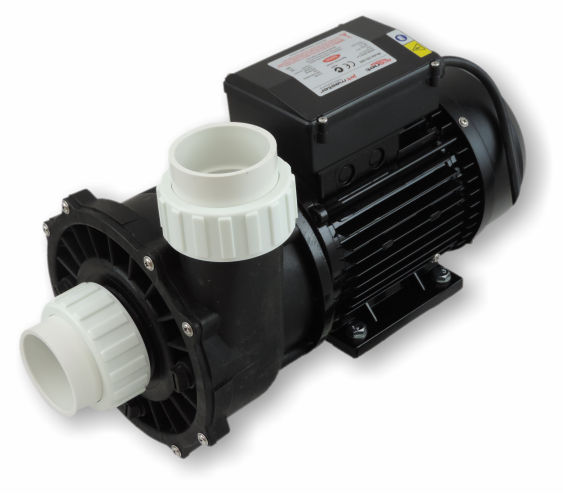

SpaNet® XS30-2S 3Hp/2-Sp JetMaster Pump

• 2.2kw 10amp high speed
• 0.45kw 3amp low speed
• Supplied with 50mm unions and fitted with AMP Plug only.
• Used on Monarch, Vortex, Oasis Spas and many other spa manufacturers.
• Direct Replacement for LX WP300-11

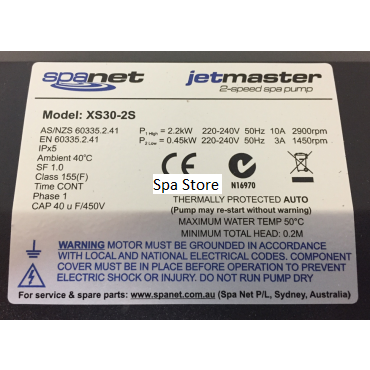

Details

AMP plug power cordset connection

Power Supply : 220-240V AC / 1PH / 50hz

Wattage : 450W / 2200W

Horsepower : 0.5HP / 3.0HP

Rated Amperage : 3.0A / 10.0A

RPM : 1450 / 2900

Capacitor : 40uF / 450v

Maximum Flow (L/min) : 670

Maximum Head (m) : 17.0

Union Fittings : 50mm (60.3mm ID)

Environment Temp : 40’C

To be fitted by a qualified electrician, pool or spa technician only. Spa Store will not be liable for incorrect installation, damage or injury caused by an un qualified person installing this part.
