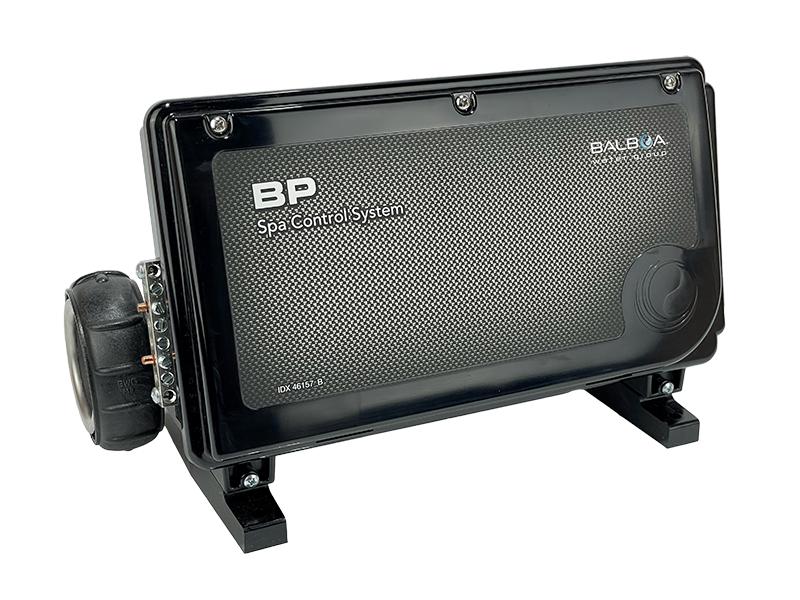

Balboa BP200G3 3.0kw Controller with Blower Expander PCB.
Upgrade your spa control system with the Balboa BP200G3 featuring a 3.0kw controller and blower expander PCB
Touchpad sold separately.
BP200G3 240volt Output Sockets
CPUMP: Circ pump (must have a circ pump if pump 1 single speed)
PUMP 1: 1Spd Pump or 2Spd Pump
Blower: Blower
240V: This outlet has a constant 240volts and is not switchable
O3/UV: This outlet is only to be used with an ozone system
BP200G3 Low Voltage
- 2 x Touchpad Outlets
- 1 x Light
- 1 x Wifi Port
BP200G3 Features
- In heater temp sensors
- Max Temp 40 degrees
- Adjustable Filtration
- Heater Modes (Ready & Rest)
- Wifi Interface
- Programmable Load Shedding
Can be used with any of the TP and SpaTouch touchpads, also can be used with the BWA wifi module.
Controller Specifications
- Heater Wattage: 3000w
- Max Current: 16amp
- Power Lead: Hard Wired
- Power Lead Length: N/A
- Heater Unions: 50mm
Controller Dimensions
- Length: 382mm
- Height: 225mm
- Width: 160mm
- Weight: 3.8kg
Warranty: Comes with a 1 year warranty (Return to base). Refer to manufacturers T&C’s.
Manufacturer: Balboa
Model: B-59271
Sold individually
To be fitted by a qualified electrician, pool or spa technician only. Spa Store will not be liable for incorrect installation, damage or injury caused by an un qualified person installing this part.
Selection Tips
- Check your data label
- Check you spa type
- Check your model number
Still not sure this is the correct heater? Contact our heater Experts.
