Product Description

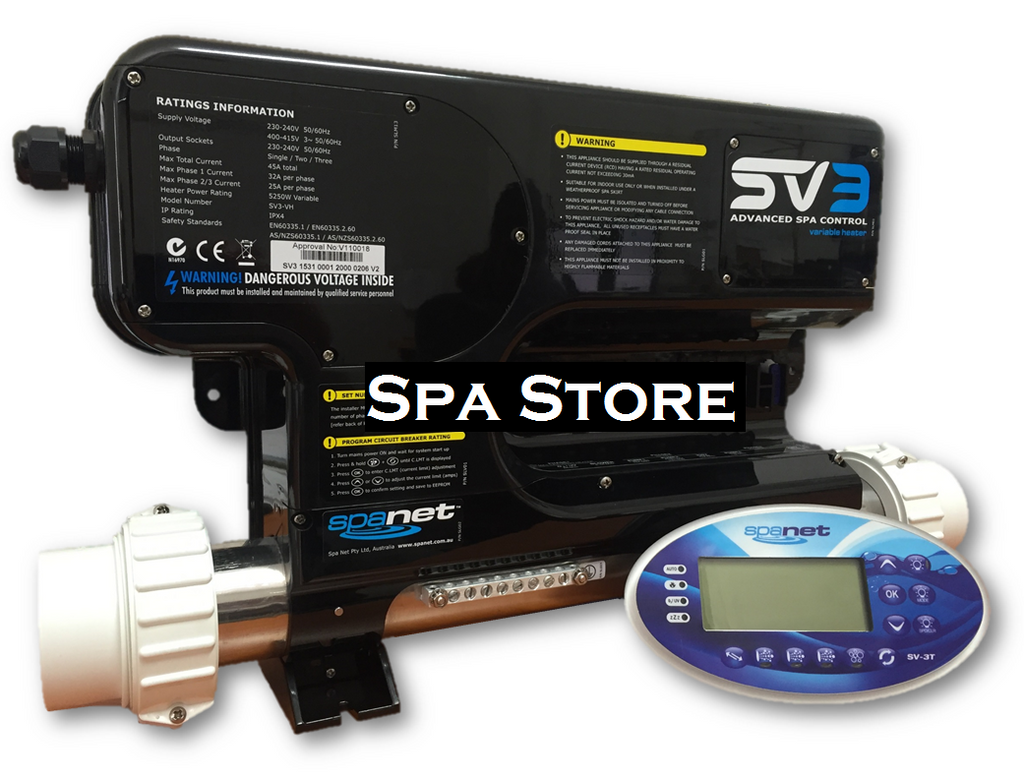

SpaNet® SV3 Variable Heat Controller Complete With Touchpad
- 6kw Smart Variable Heater
- Complete heat pump interface
- PowerSAVE technology
- Single, 2 and 3-phase ready
- Easy to read backlit display and buttons
SPECIFICATIONS
Power: 1-phase 230-240v AC / 3-phase 400-415v AC
MAX Total Current: 45amp or 25amp per phase
Controller Dimensions: 544x309x90mm 5kg
Touch Pad Dimensions: 165mm long and 94mm wide
Outputs
Heater: 6kw Variable
Light: x 2 (SpaNet® LED light)
Touch Pad socket: x 2
Circulation Pump: x1 (Adj 1-24 hour)
Ozone: x 1
Air Blower: x1 (Vari Spd)
Pump 1: 1 x 1 or 2speed pump
Pump 2: 1 x 1-speed (If outlet Pump 1 has a 2-speed pump fitted Pump 2 outlet can not be used)
Pump 3: 1 x 1spd pump
Model: SN-SV3-VH-PKG
Manufacturer: SpaNet®
Sold individually
To be fitted by a qualified electrician, pool or spa technician only. Spa Store will not be liable for incorrect installation, damage or injury caused by an un qualified person installing this part.
Selection Tips
- Check your data label
- Check you spa type
- Check your model number
Still not sure this is the correct heater? Contact our heater Experts.
